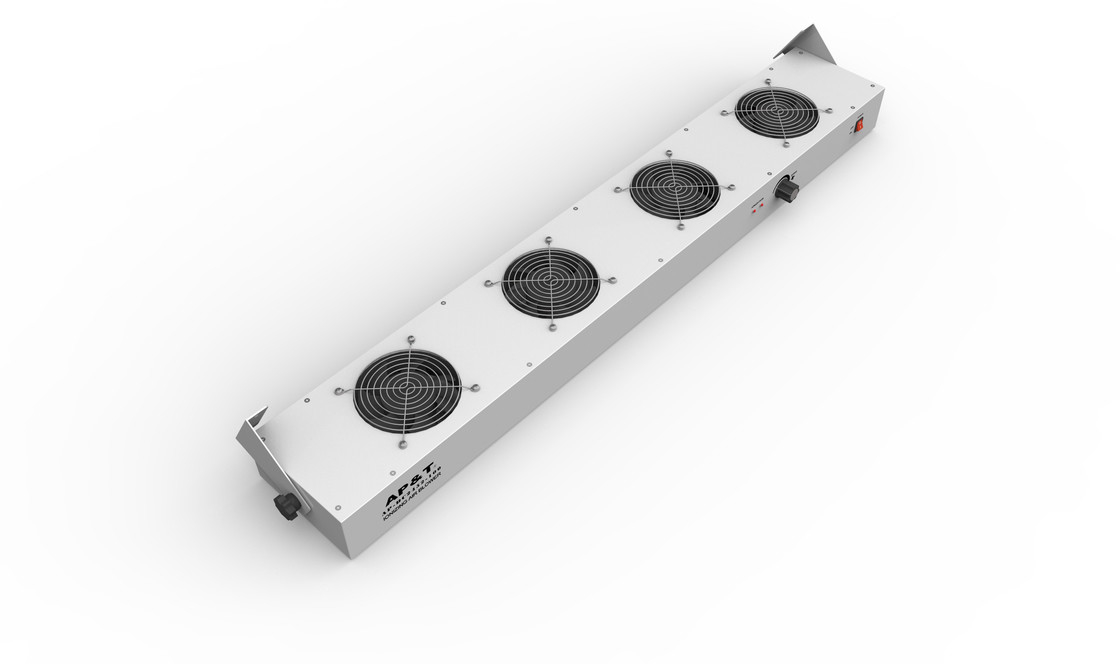

Anti - Static Dust Removal Overhead Ionizer , Power Saving Ionizing Air Blowers

Anti - Static Dust Removal Overhead Ionizer , Power Saving Ionizing Air Blowers

    • Anti - Static Dust Removal Overhead Ionizer  , Power Saving Ionizing Air Blowers
    • Anti - Static Dust Removal Overhead Ionizer  , Power Saving Ionizing Air Blowers
    • Anti - Static Dust Removal Overhead Ionizer  , Power Saving Ionizing Air Blowers
  • Anti - Static Dust Removal Overhead Ionizer  , Power Saving Ionizing Air Blowers

    Product Details:

    Place of Origin: China
    Brand Name: AP&T
    Certification: CE
    Model Number: AP-DC2452-100

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: negotiation
    Packaging Details: Standard Export Packing (Carton)
    Delivery Time: 3 to 5 working days
    Payment Terms: T/T, Western Union, MoneyGram,Paypal
    Supply Ability: 2000 pcs / month
    Contact Now
    Detailed Product Description
    Discharge Speed: <3s Ion Balance: ±10V
    Power: 25W Input Voltage: 220V/50HZ Or 110V/60HZ
    Effective Range: 1200*600mm Dimension: 1040x124x175mm (L*W*H)
    Ion Balance: ≤|±10V| (450mm Testing Center Vertical From The Air Outlet) Discharge Speed: ≤1.5S(300mm From Air Outlet Right Ahead)

    Anti - Static 25W Dust Removal Overhead Ionizer AP-DC2452-100

    General



    AP-DC2452-100 overhead ionizing air blower applies the DC current ion synchronous transmitting technology. High volume of positive and negative ion are generated by two independent transmitting electrode with direct current corona discharge and arrive the object surface where the static to be eliminated most equally. Eliminate static and control the remaining static under international standard.

    AP-DC2452-100 is widely used in electronics,plastic,chemical,printing and optics industry etc.

    Anti - Static Dust Removal Overhead Ionizer  , Power Saving Ionizing Air BlowersAnti - Static Dust Removal Overhead Ionizer  , Power Saving Ionizing Air Blowers

    Features

    Fit for static elimination in large area

    The combination of multi-units independent ion transmitting

    Stepless adjustment of the air volume and longer lifelong of the fan

    Fast speed of the elimination and stable performance of the circuit

    Detachable cover net both front and back, convenient to clean and maintain



    Industry Applications



    Widely used in electronics, plastic,chemical,printing and optoelectronics industries



    Specification

    Model AP-DC 2452-100
    Input voltage AC 220V/50Hz or 110v/60Hz (with external power adapter)
    Output voltage DC±4KV→±7KV
    Output frequency 30Hz(Default)
    Discharge speed ≤3S (450mm Testing center vertical from the air outlet)
    Power 25W
    Discharge range 1200*600mm(L*W)
    Air Volume 4*95 CFM(Adjustable)
    Noise <65dBA(150mm from air outlet)
    Ozone thickness ≤0.02ppm(150mm from air outlet)
    Ion balance ≤|±10V| (450mm Testing center vertical from the air outlet)
    Discharge speed ≤1.5S(300mm from air outlet right ahead)
    Working temperature 0℃-50℃
    Working humidity <70%
    Dimension

    1040x124x175mm (L*W*H)



    Working Ways(DC)



    Anti - Static Dust Removal Overhead Ionizer  , Power Saving Ionizing Air Blowers



    Elimination Effect



    Anti - Static Dust Removal Overhead Ionizer  , Power Saving Ionizing Air Blowers

    Testing instrument :3M-711 Static tester

    Testing standard :SJ/T10694-2006,GB/T14437-97

    Testing voltage :±1000 — ±100V Attenuation

    Testing environment :Humidity 30%—50%  Temperature 20±5℃



    Outline Dimensional Drawing



    Anti - Static Dust Removal Overhead Ionizer  , Power Saving Ionizing Air Blowers



    Positioning

    Anti - Static Dust Removal Overhead Ionizer  , Power Saving Ionizing Air Blowers
