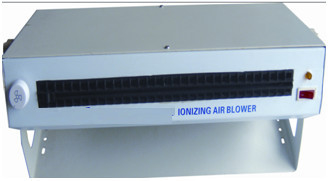

ATS XC-2 Extended Coverage Benchtop Ionizing Blower with heater

ATS XC-2 Extended Coverage Benchtop Ionizing Blower with heater

    • ATS XC-2 Extended Coverage Benchtop Ionizing Blower with heater
  • ATS XC-2 Extended Coverage Benchtop Ionizing Blower with heater

    Product Details:

    Place of Origin: china
    Brand Name: ATS
    Model Number: ATS XC-2

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiation
    Packaging Details: Carton
    Delivery Time: 7 to 10 days after confirm the order
    Payment Terms: T/T Paypal
    Supply Ability: 1000pcs/month
    Contact Now
    Detailed Product Description



    ATS XC-2 Extended Coverage benchtop Ionizing blower with heater is a large wind volume, large-scale ion eliminator. Short neutralization time, large coverage area, with heating function, it can be used as a desktop or suspended type, ion balance voltage of 0V (+/-5V).



    Working principle:
    ATS XC-2 extended Coverage benchtop ionizing blower Can produce a lot of air with positive and negative Ion, the electric charges on the object and fall, when the object surface charge negative static , It will attract positive ion in the air, when the object surface charge positive static, it will attract negative ion in the air, so that the electrostatic on the surface of the object is eliminated.

    Product features:

    *Suitable for large-scale to eliminate static electricity;

    *Quick static elimination, convenient installation;

    *With cleaner; of ion emitter

    *Build-in fan and high voltage generator;

    * Ion wind volumn is adjustable

    Applications:
    Precision electronic products; electronic assembly line, the production of microelectronics, optoelectronics; pharmaceutical manufacturing assembly lines, printing, packaging; small part injection molding, shear plastic film, circleand film, as well as mould release etc.

    Specification

    Operating Voltage

    220V & 380V

    Current Consumption

    2.3A or 1.4A

    Operating Temperature

    -10~50℃

    Size

    570mm(L)×220mm(W)×190mm(H)

    Weight

    8.8kg

    Air Volume

    45-190CFM

    Offset voltage

    0v±10v

    Air Coverage

    45cm×190cm

    Discharge Time (5000v-500v at 300mm)

    ≤0.6s

     Test  Results

    Testing Conditions

    Testing Voltage:1KV to 100V Operating Voltage:110/220V Temperature:22℃

    Distance

    300mm

    600mm

    900mm

    1200mm

    Left300mm

    1.3s

    2.2s

    3.9s

    6.8s

    Center

    1.1s

    2.0s

    3.70s

    6.4s

    Right300mm

    1.2s

    2.4s

    3.9s

    6.5s



    Product warranty and service
    1.warranty
    All the product’s warranty period is one year, since the date of sale quality problems caused due to product a year own part, material and process problems, we will repair free of charge.

    2.After the warranty period of service
    Where the company sells after warranty period still will be responsible to repair the product free in charge, in order to protect the interests of customers.

    3.If customers open and repair ion fan themselves, Our company won’t supply free warranty, according to the situation of discretion.
